Public works


CIMTEX / CIMTEX Hydro - Concrete Canvas


In the areas of public works, road and rail infrastructures, petrochemicals, and mining industry, CIMTEX® and CIMTEX HYDRO® products are used for the following applications :

  • Channel lining
  • Slope protection
  • Dike lining
  • Pipeline protection
  • Erosion protection


CIMTEX® and CIMTEX HYDRO® are concrete in rolls that installs 10 times faster than conventional concrete solutions. Concrete Canvas products are flexible, concrete filled geosynthetic, that hardens on hydration to form a thin, durable, waterproof and fire-resistant concrete layer.

Find more information on


  • Quick and easy to install
  • Product available in man portable rolls for applications with limited access
  • Ready to use solution : the concrete is pre-mixed so there is no need for mixing, measuring or compacting
  • Good drape characteristics and will closely follow the ground profile and fit around existing infrastructure
  • Eco friendly : product is low mass, low carbon technology which uses up to 95 % less material than conventional concrete for many applications
  • The fibre reinforcement prevents cracking, absorbs energy from impacts and provides a stable failure mode
  • Durable product : chemical resistance, weathering performance and UV resistance
  • The PVC backing on one surface ensures that the material has excellent impermeability


Earth retention Earth retention
Mechanical protection Mechanical protection
Waterproofing Waterproofing


  • 3 available thickness : 5 mm (Cimtex T1), 7 mm (Cimtex T2) and 11 mm (Cimtex T3)
  • 2 possible packaging : batched rolls or bulk rolls
  • 3 rolls wide for Cimtex T1 and Cimtex T2 : 1, 2 and 3 meters
  • Drying time : 1 to 2 hours at room temperature. Concrete Canvas products will achieve an 80 % strength rate after 24 hours of hydration

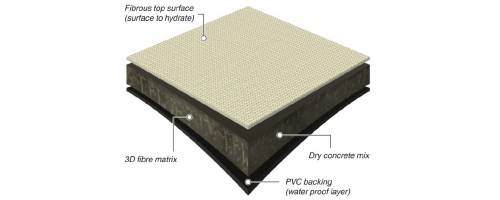

  • Consistance :
    • Fibrous top surface
    • 3 dimensional fibre matrix containing a specially formulated dry concrete mix
    • PVC backing on one surface to ensure excellent impermeability


Technical data sheet
Ask for the technical data sheet
